Rexnord Explains Industrial IoT Development Path at ARC Industry Forum

By Harry Forbes

ARC Report Abstract


The 2019 ARC Industry Forum took place in Orlando on February 4 to 7, 2019. This year’s event attracted more than 950 attendees from industry, infrastructure, and cities, as well as suppliers, system integrators, and the press.  The agenda consisted of six tracks covering all aspects of digital transformation plus numerous focused workshops and co-located meetings of groups such as the Open Process Automation Forum (a forum of The Open Group).

One session titled “IoT Network Edge Infrastructure and Devices” focused on the hot topic of edge infrastructure and edge computing.  A highlight of this session was a presentation by Rick Morse, Vice President Digital Solutions of Rexnord Power Transmission.  Mr. Morse’s presentation covered Rexnord’s key learnings from developing an IoT architecture and used the example of Rexnord’s recent Smart Gear Drive products to explain the Industrial IoT development path.

Rexnord manufactures extremely large mechanical drives that are often used to drive large conveyor belts in vertical industries such as mining & minerals. In these applications, the gearboxes are all critical equipment, as any failure can stop part or all of the mine’s production. Yet, since these gearboxes are often operating in remote locations, getting service technicians or shipping replacement parts to these sites is time-consuming and very costly.  This makes it extremely valuable for mine owner-operators to know in advance of any abnormal conditions in their large gear drives.

Rexnord Industrial IoT Strategy and the Industrial IoT Development Path

Mr. Morse emphasized four fundamental rules for developing an effective IoT architecture:

First, the customer’s needs rather than technology must drive the architecture.  He emphasized that the plethora of technologies available to the system architects is not always helpful. Multiple available technologies could prove a severe distraction to system architects. Instead they should focus primarily on customer requirements and use those to drive the architecture.

Second, realize where your own company adds value and only expend development resources in those areas. In areas where your own company cannot add value effectively, partnerships are essential. Mr. Morse pointed to Rexnord’s wide area networking requirement as an area where his company could not add value effectively and needed to partner to deliver an effective IoT solution.  Rexnord chose IoTium's managed service to deliver secure wide area networking to communicate with these large gearboxes, many installed and operating in remote locations, including extremely remote mining operations.

Mr. Morse's third rule was to apply off-the-shelf tools and technologies whenever possible. This simplified system integration and enabled Rexnord to deliver an architecture that consisted mostly of elements that were already familiar to the end users.

Finally, Morse urged attendees to avoid “simply solving problems just because they could be solved.”  Again, the plethora of technologies and new capabilities could distract developers and architects from addressing the most important customer problems and needs.

Partnership for SDWAN

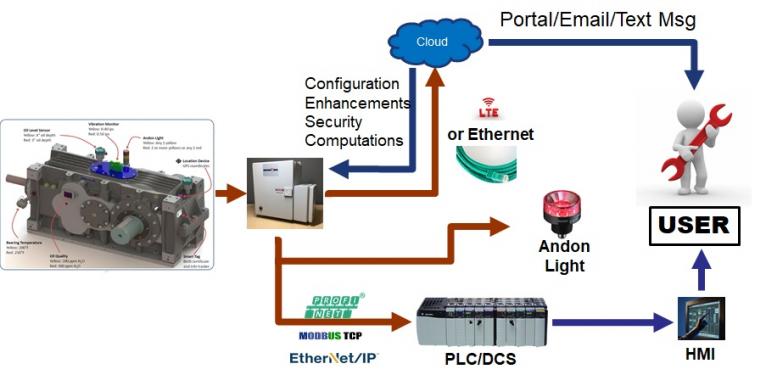

For its IoT architecture, Rexnord employed off-the-shelf technologies to connect the company’s Smart Gear Boxes to local networks and the cloud.  Sensor data and diagnostic information are delivered to a local PLC using any of the most popular industrial Ethernet protocols. In addition, a local andon light communicates condition at the equipment location.  The end users can also be made aware of conditions through their automation system HMI and through email and or text messages delivered from the cloud. These were the exact ways that the end users already consumed plant alarms and equipment condition data.

Rexnord Industrial IoT Architecture Industrial IoT Development

ARC Advisory Group clients can view the complete report at ARC Client Portal

If you would like to buy this report or obtain information about how to become a client, please Contact Us

Keywords: Edge, Edge Computing, IIoT, IoTium, IoT Networks, Smart Devices, WAN, ARC Advisory Group.
